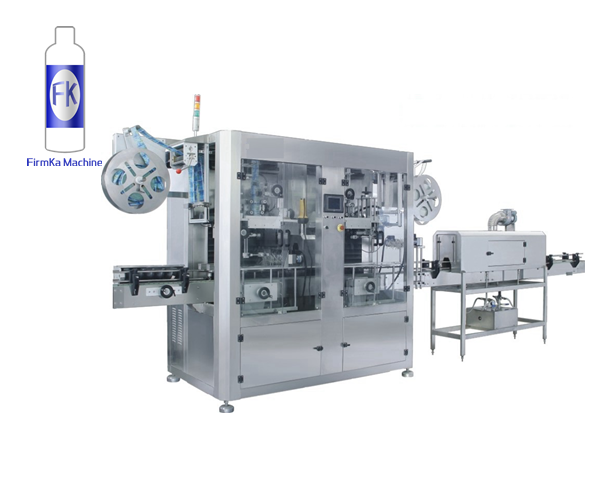

The sleeve labeling machine is widely used in the food, beverage and pharmaceutical industries and condiments, juices, injection needles, milk, refined oils, etc. Its excellent high-speed stability, unique smart design, and the safety model of man-machine concord are gradually in the market Occupy an outstanding position.
Center column card material:
Cause of:
1. If the control of the folding diameter and thickness of the film material is too large or too small, especially in the lower size (smaller) of the standard size, it is more likely to cause the center column to jam.
2. The clamping point of the center column is too tight, which causes the label to pass through the center column and jam.
3. Each time the blade edge of the cutter returns to the origin, it may stop in the groove of the center column, causing the film label to touch the blade and jam.
4. The center column groove may be "cut" by the cutter, which causes the surface of the center column to be not smooth and the subscripts to be smooth, resulting in jamming.
5. When the cut label is waiting to be swiped, the swipe down wheel does not actually smoothly insert the cut label into the bottle body, resulting in a domino effect.
6. After replacing the new blade, the length is not enough to cut the label and then swipe down and jam.
solution:
1. Effectively require the label supplier to control the fold diameter and thickness value. Normally, the fold diameter required is within ± 0.5mm as the standard value. The thickness of the short label is not less than 0.035mm and the thickness of the long label is not less than 0.045mm As appropriate. The customer must ask the label folding diameter and thickness to be within the standard value for the label machine to use.
2. Correctly adjust the strength of the upper and lower driving rubber wheels.
3. It is necessary to check whether the origin of the cutter is correct, and check the matching of the entire process control. Be sure to drive the next label within the valid time after the cutter leaves the center column. Stay inside the cutter head and not too close to the groove of the center post to ensure no jamming.
4. If there is a cut on the groove of the center column, the surface can be smoothed.
5. Make sure that the clamping contact between the brush lower wheel group and the center column is not shifted, and whether the brush lower wheel is worn and the force caused by the brush cannot be evenly applied to the bottle, otherwise the label will Cause a chain reaction to jam the center column.
6. Make sure that each blade after replacement has the same length and can cut off the label.
