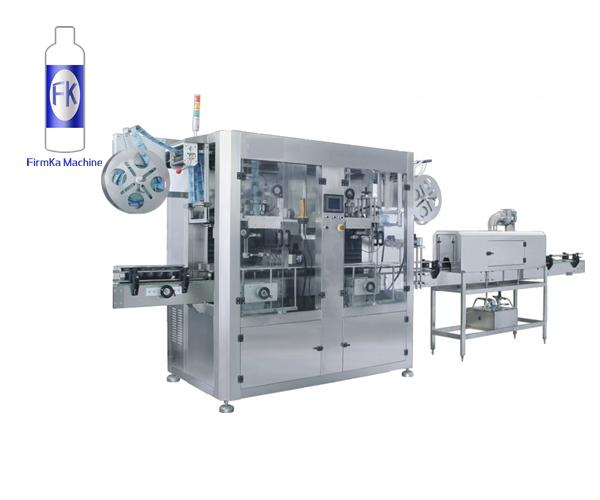

Introduction to the components of the automatic shrink sleeve labeling machine
Each parts of labeler affect the labeling efficency
1. Cutter set
Built-in blades, with planetary pairing and deflection crankshaft steel frame, cut shrink film.
2. Machine stand
The whole machine is made of aluminum alloy with anode treatment and 304 stainless steel material to support the host and fix the conveyor belt.
3. Shrink furnace (electric heating or steam type)
Use electric heating or steam heat to shrink and evenly attach the label to the bottle.
4. Drive group
It adopts single-group or double-group mechanism synchronous servo motor control, so that the shrink film can be conveyed in a fixed size.
5. Bottle separating screw
The feeding material is sleeved on the bottle, and the screw is used for fixed-distance transportation, so that the bottles are equidistantly separated to facilitate the label sleeve.
6. With bottle set
The two sides rotate synchronously, and the height and the positioning of the bottle clamp are adjusted by only one hand wheel. The purpose is to prevent the bottle from shaking during transportation and to facilitate the setting of the label height.
7. Three-color warning light
It is a green warning light during normal operation, a yellow flashing light when there is no label film material, and a red light when the host is abnormal.
8. Center column
The label film material is sleeved and opened, so that the film material can be transported and cut.
9. Electric eye frame group
Use light electric eye to transmit signal, provide control system for fixed size transportation, adjust the height of the electric eye, and determine the cutting position of the blade in the cutter head.
10. Brush set
Use rubber to brush the label sleeved in the bottle until it is positioned.
11. Scroll down the group
The synchronous adjustment mechanism is adopted to adjust the two sets of transfer wheels under the brush to slightly touch the rollers under the center column. When the label passes, the label is inserted into the bottle at a higher speed.
12. Material rack group
The fixed paper ring of the label film can be adjusted from 5" to 10", and the output is pressure fed by a set of conveying roller reduction motors.
13. Conveyor belt
Use the frequency converter to adjust the conveyor belt speed to match the speed suitable for the production capacity.
14. Photo battery eye
Monitor the bottle to the proper position, and output a signal to make the host automatically insert the label.
15. Feeding group
It is composed of a feeding box that controls the tension of the label feeding and a feeding rack above the electric eye rack group where the label is turned and positioned to convey the label film.
16.Human Machine Interface
It is the control center of the automatic labeling machine. Each operation display page is divided into manual, automatic, setting, abnormal display, etc. There are also several rotary buttons, which are used to operate labeling
